Antenna Tuner

mAT-10 QRP TUNER  (Support FT-817/818)

The mAT-10 is a tuner designed for YAESU FT-817/818, it can also be used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated control cable, it is a dedicated tuner, which can achieve convenient "one-key tuning". If no control cable is used, it is a universal QRP tuner for all low-power transceivers.

The tuner can work within the range of 1.8MHz to 54MHz, at power levels up to 30 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

mAT-K100 Tuner For KENWOOD & ICOM

The mAT-K100 is an automatic antenna tuner specially designed for modern KENWOOD and ICOM HF transceivers. It has two control cables to choose from: mAT-CK and mAT-CI. They are suitable for KENWOOD and ICOM transceivers respectively. With matching control cables, tuners can be used for corresponding transceivers.

mAT-30 Automatic Tuner For YAESU

mAT-30 is specially engineered to integrate with you YAESU transceiver, and is fully compatible with YAESU tuner. The mAT-30 connects to the CAT port on the back of the radio and is operated by the radio through this CAT interface.

mAT-180H Tuner For ICOM & KENWOOD

The mAT-180H is an automatic antenna tuner specially designed for modern ICOM and KENWOOD HF transceivers. It has two control cables to choose from: mAT-CI and mAT-CK. They are suitable for ICOM and KENWOOD transceivers respectively. With matching control cables, tuners can be used for corresponding transceivers.

mAT-125E General Automatic Antenna Tuner

The mAT-125E can work within the range of 1.6MHz to 54MHz. The mAT-125E provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. The mAT-125E has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-125E uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second.

Two 18650 lithium batteries installed inside tuner to provide power for the tuner. mAT-125E uses little power while tuning, and essentially zero power when in standby, when the equipment is full of electricity, it can work for a long time.

mAT-40 Automatic Antenna Tuner

The mAT-40 lets you rapidly tune any antenna automatically: unbalanced or single-wire. It can be operated by various brands of transmitters by selecting different interface cables, such as ICOM, YAESU, and KENWOOD, just like their own brand tuners. The tuner housing is produced by aluminum milling and oxidation surface technology, beautiful, delicate, compact and firm. The mAT-40 can work well in all kinds of harsh outdoor environments. The maximum size of the tuner is only 20 cm, which is the smallest outdoor antenna tuner now.

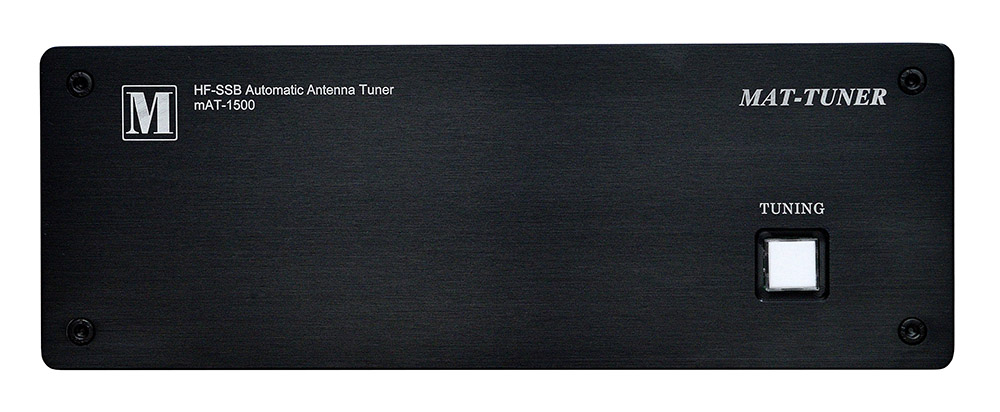

mAT-1500 Automatic Antenna Tuner
(End of Sale)

The mAT-1500 antenna tuner is specially designed for modern high-power transmitters and power amplifiers. It allows a maximum of 1500W (PEP) RF signals to pass.

mAT-1500Pro Automatic Antenna Tuner

The mAT-1500Pro antenna tuner is specially designed for modern high-power transmitters and power amplifiers. It allows a maximum of 1500W (PEP) RF signals to pass.

mAT-1500ProII Automatic Antenna Tuner

The mAT-1500ProII antenna tuner is specially designed for modern high-power transmitters and power amplifiers. It allows a maximum of 1500W (PEP) RF signals to pass.

mAT-705 Automatic Antenna Tuner

This is an automatic antenna tuner specially designed for ICOM IC-705 transmitter. It has a built-in 9V alkaline battery, an all-metal shell, small, exquisite, and sturdy, which can smoothly match a variety of different antennas.

mAT-Y200 Automatic Antenna Tuner

mAT-Y200 is specially designed for YAESU transmitters with RF power not higher than 200W(SSB).

mAT-M200 Automatic Antenna Tuner

mAT-M200 is specially designed for ICOM and KENWOOD transmitters with RF power not higher than 200W(SSB).

mAT-S1500 SWR&Wattmeter Meter

The mAT-S1500 is designed as an accurate instrument for monitoring station performance. It uses two RF specific measurement chips, which can accurately measure the power and SWR of the RF system, but cannot display information such as spectrum and impedance.

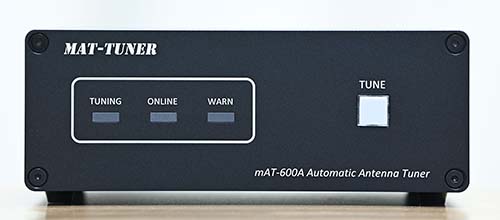

mAT-600A Universal Automatic Antenna Tuner

The mAT-600A is a universal high-power automatic antenna tuner compatible with nearly all transceivers and linear amplifiers. It supports a maximum RF power of 600 watts (SSB) and operates across a frequency range of 1.8-54MHz. Featuring an extremely simple operation, the tuner's front panel contains just one button and three indicator lights.



Quick

mAT-10 for FT-817/818
mAT-30 for Yaesu
mAT-40 for ALL
mAT-180H for Icom&Kenwood
mAT-K100 (Discontinued)
mAT-125E Universal
mAT-705 for IC-705
mAT-Y200 for Yaesu 200W
mAT-M200 for Icom 200W
mAT-S1500 PWR&SWR Meter
mAT-1500Pro for ALL
mAT-1500ProII for ALL
mAT-600A Universal
